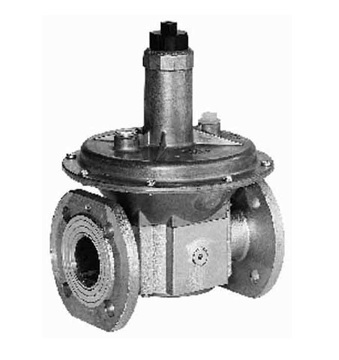

Dungs 065-151 is an FRS 5050 Flanged used for Stand Alone Pressure Regulators Flanged FRS 5050 DN 50.
The DUNGS FRS 5.../10 pressure regulator is a spring-loaded pressure regulator with adjustable setpoint spring. Internal sensor for regulating output pressure. - Input pressures up to 7 PSI (CSA to 5 PSI) - High flow rate - Sturdy, precise, and sensitive regulation of regulator output pressure - Lock-up Type Regulator - Vent limiter; approved as a vent-less regulator by some authorities having jurisdiction. (Review applicable codes for vent line requirements) - DIN PN16 Flange connections.
The DUNGS FRS 5.../10 pressure regulator is recommended for industrial and commercial heating applications and is suitable for natural gas, propane, butane, air, and other inert gases. The aluminum body; Two upstream and downstream taps; one tap on top; Refer to the selection guide for technical specifics, flow, and pressure drop. Refer to the spring guide for correct output pressure.
|Maximum Operating Pressure||7 PSI (500 mbar) CE; 5 PSI ( 360 mbar) CSA|
|Input Pressure Range||2 to 200 in. W.C (5 mbar to 500 mbar)|
|Output Pressure Range||1 to 80 in. W.C (2.5 mbar to 150 mbar); adjustable with different springs|
|Ambient Temperature Rating||+5F to +160F (-15C to +70C)|
Following are the Attached files for this product:
Karl Dungs Stand Alone Pressure Regulator Flanged FRS Technical Datasheet
Karl Dungs Stand Alone Pressure Regulator Flanged FRS User Manual
